Uložení zadních ramen Polaris

JAY PARTS BUSHING & SLEEVES KIT A-ARMS REAR - SCRAMBLER & SPORTSMAN 850/1000

The sleeves are made of vacuum-hardened and ground stainless steel, only the best is good enough for our claim!

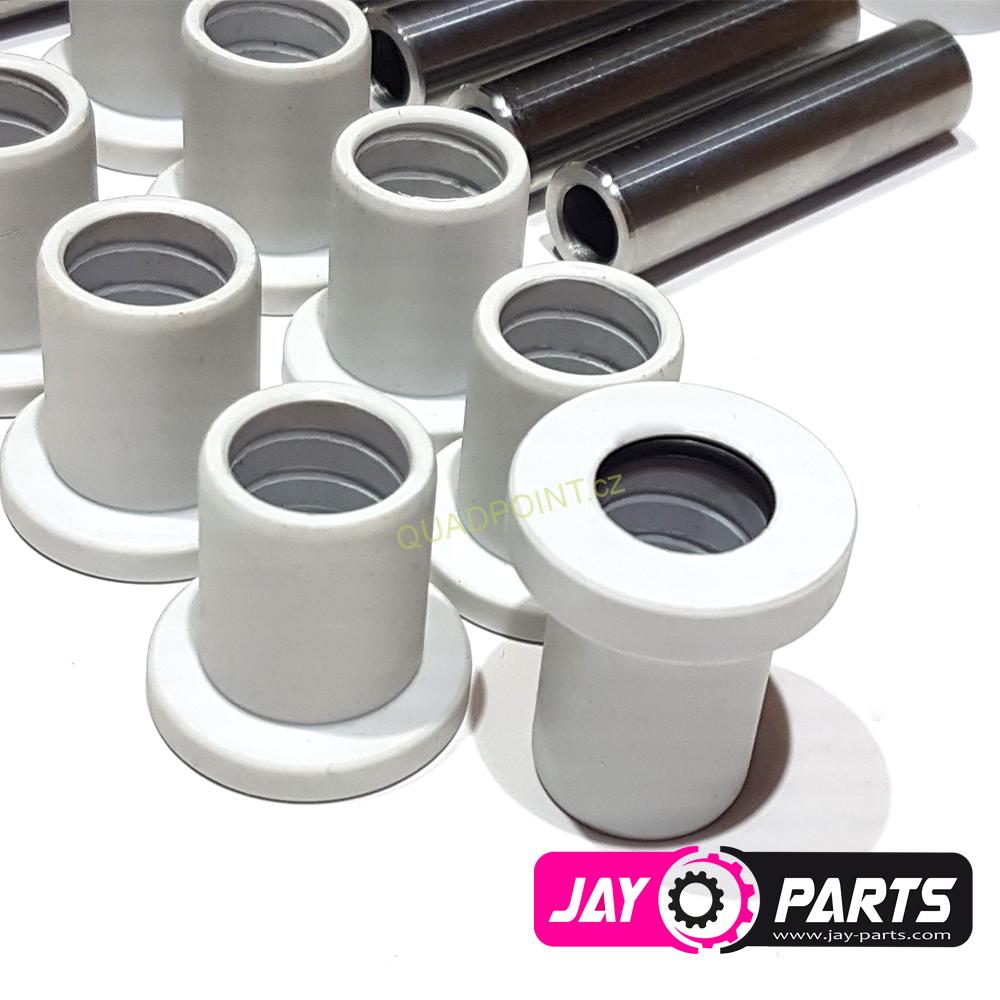

PE-GL with added oil is used as a self-lubricating, wear-resistant material for the bushings. With an all-round lubrication we rated an inner spiral groove as optimal. Sealing against dirt and water takes over an O-ring.

FEATURES
- hardened stainless steel sleeves
- stainless
- bushing PE-GL
- spiral groove inside
- sealed with O-rings

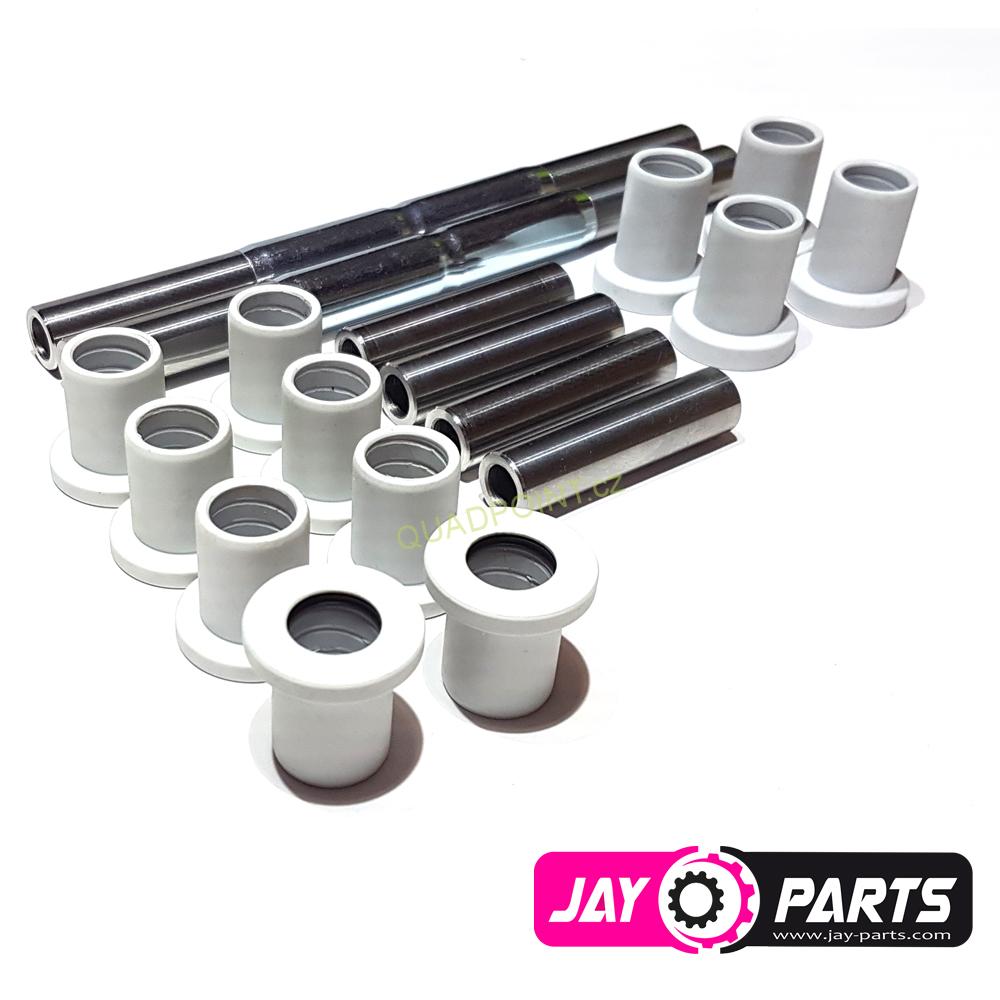

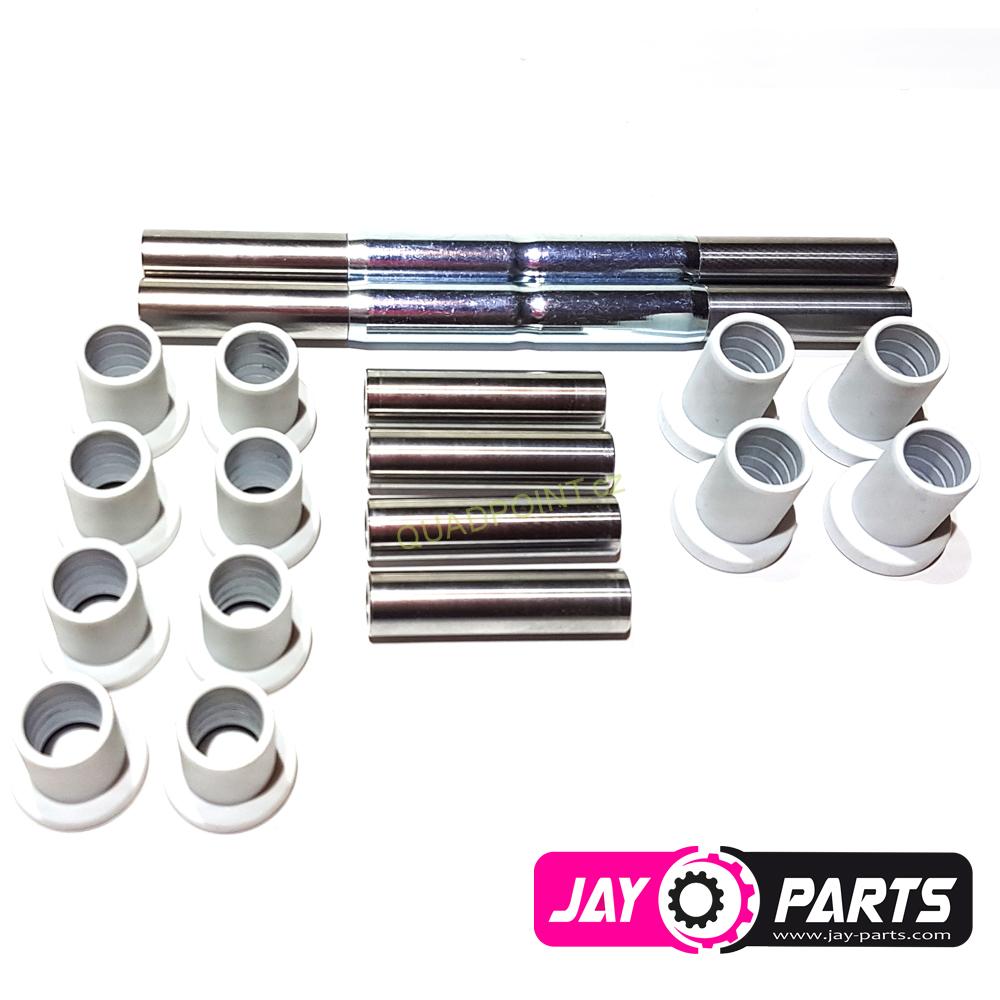

DELIVERY UNIT:
- 4 short sleeves
- 2 long sleeves (3 sections)
- 8 short bushes
- 4 long bushes
The kit includes all parts for the rear axle left and right!

WORKS WITH THE FOLLOWING MODELS:
-Polaris Scrambler 850 & 1000 2013 –
-Polaris Sportsman 850 & 1000 2009 – 2017

ATTENTION
Do not hit the bushings with a hammer!

RECOMMENDATION:
We recommend using a water-resistant grease. BEL RAY Waterproof you will find in our Shop too.

IMPORTANT: When installing, use the assembly grease!
After use, when greasing, only apply grease to the grease gun until the first resistance is detected. Fat should not spill out!
