Motýl řízení

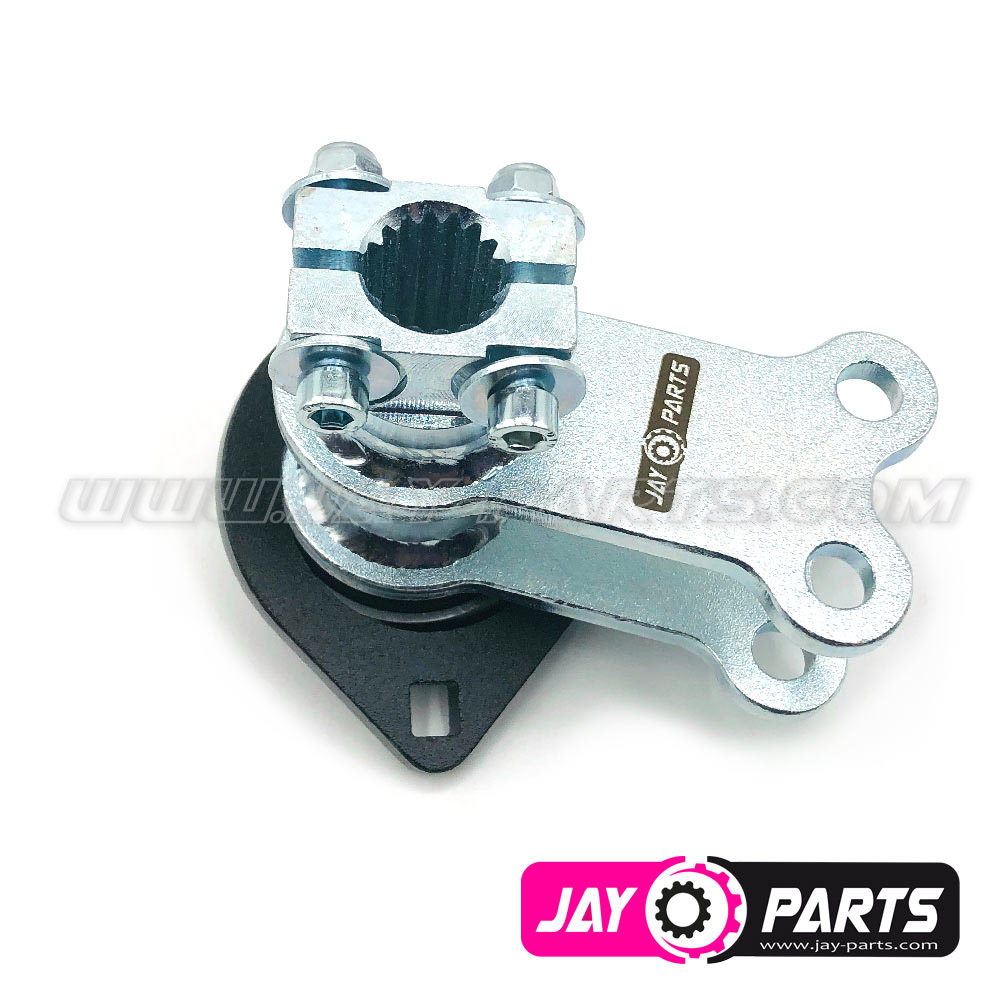

JAY PARTS PITMAN POLARIS
SPORTSMAN 450/570 EPS WITH DOUBLE CLAMPING

for vehicles with power steering. The Jay Parts Pitman is made of high-strength steel and the highlight is the double clamping and the high material quality.

WHAT IS THE PROBLEM RESOLVED?
Steering play is 80% a worn Pitman. The models before 2013 was without clamping and from 2014 was provided with a clamp. The best way to check it is if someone moves the handlebars and you are watching with a flashlight just under the power steering the teeth. 1 mm game between Pitman and gearing is 8 - 10mm at the handlebar end!

FEATURES:
- S355 steel
- double clamping
- FAG bearing custom made
- Made in Europe

Replaces article number: 1824101

RECOMMENDATION
For installation, we also recommend checking the tie rod ends first and also changing them during play.

WORKS WITH THE FOLLOWING MODELS:
- Polaris Sportsman 450    2016 -
- Polaris Sportsman 570 EPS   2014 -
- Polaris Sportsman X2, 6x6 570 EPS   2017 -
- Polaris Sportman Touring 570 EPS   2015-
